| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Type | Flat Belt |
| Material | Canvas, Silicone Rubber |
| Thickness | 1.5-2mm, 2.5-3mm |
| Click to view more | |
Preferred Buyer From
| Location | Anywhere in India |
Product Details
We are instrumental in manufacturing, exporting & supplying of Chrome Leather Flat Belts from Punjab, India. The finest high density Chrome Leather we offer can have applications on both sides or one side leather and other side nylon fabric. Our Flat belts can take up intermittent loads with ease, hence, is widely preferred across the globe. We offer Chrome Leather Flat Belts at pocket-friendly prices.
Salient Features -
Specifications
| Belt Grade | Top Cover | Reverse Cover | Traction Layer | Total Thickness | Shaft Load 1% | Min Pulley | Belt Weight approx. | ||||
| Material | Colour | Surface | Material | Colour | Surface | Material | mm | N/mm | mm | Kg/Sq. mtr. | |
| LF 10 IMP | Nylon Fabric* | Green01 | - | Chrome Leather | Grey | - | Polyamide | 2.85 | 5 | 40 | 2.9 |
| LF 14 IMP | Nylon Fabric* | Green01 | - | Chrome Leather | Grey | - | Polyamide | 3.1 | 7.5 | 60 | 3.15 |
| LF 20 IMP | Nylon Fabric* | Green01 | - | Chrome Leather | Grey | - | Polyamide | 3.35 | 10 | 90 | 3.35 |
| LF 25 IMP | Nylon Fabric* | Green01 | - | Chrome Leather | Grey | - | Polyamide | 3.6 | 12.5 | 120 | 3.7 |
| LF 30 IMP | Nylon Fabric* | Green01 | - | Chrome Leather | Grey | - | Polyamide | 3.85 | 15 | 200 | 4 |

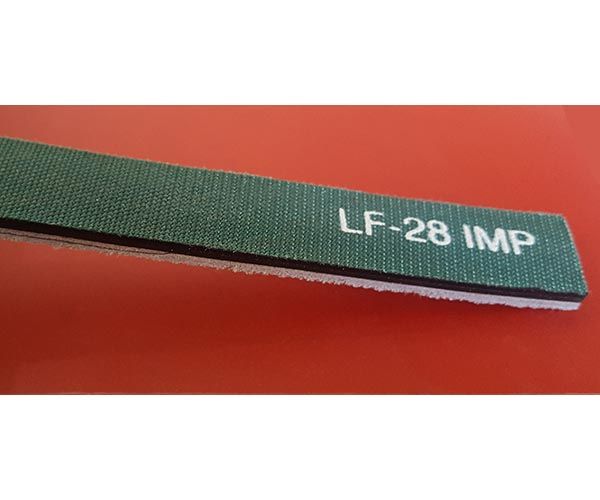

| LF 28 IMP | Nylon Fabric* | Green01 | - | Chrome Leather | Grey | - | Polyamide | 4.05 | 15 | 200 | 4.05 |
| LF 40 IMP | Nylon Fabric* | Green01 | - | Chrome Leather | Grey | - | Polyamide | 4.55 | 20 | 240 | 4.95 |
| LF 42 IMP | Nylon Fabric* | Green01 | - | Chrome Leather | Grey | - | Polyamide | 5 | 22.5 | 280 | 5.65 |
| LF 56 IMP | Nylon Fabric* | Green01 | - | Chrome Leather | Grey | - | Polyamide | 5.95 | 30 | 380 | 6.15 |
| LF 60 IMP | Nylon Fabric* | Green01 | - | Chrome Leather | Grey | - | Polyamide | 5.75 | 30 | 380 | 6.45 |
| LF 70 IMP | Nylon Fabric* | Green01 | - | Chrome Leather | Grey | - | Polyamide | 6.9 | 37.5 | 460 | 7.4 |

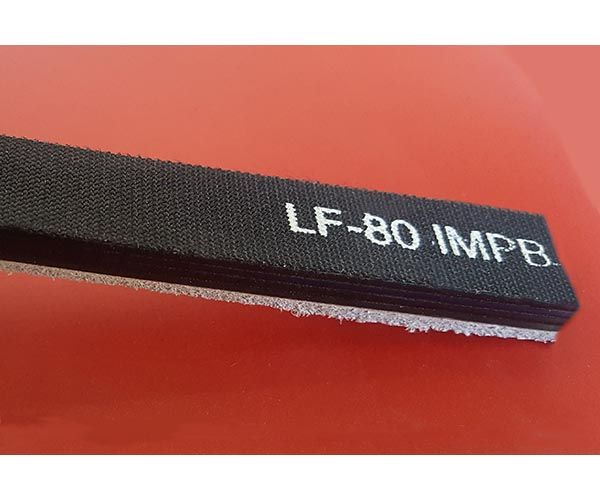

| LF 80 IMP | Nylon Fabric* | Green01 | - | Chrome Leather | Grey | - | Polyamide | 6.95 | 40 | 500 | 7.95 |
| LF 84 IMP | Nylon Fabric* | Green01 | - | Chrome Leather | Grey | - | Polyamide | 7.85 | 45 | 560 | 8.1 |
| LL 10 IMP | Chrome Leather | Grey | - | Chrome Leather | Grey | - | Polyamide | 4.5 | 5 | 40 | 4.55 |
| LL 14 IMP | Chrome Leather | Grey | - | Chrome Leather | Grey | - | Polyamide | 4.75 | 7.5 | 60 | 4.8 |
| LL 20 IMP | Chrome Leather | Grey | - | Chrome Leather | Grey | - | Polyamide | 5 | 10 | 90 | 5 |
| LL 25 IMP | Chrome Leather | Grey | - | Chrome Leather | Grey | - | Polyamide | 5.25 | 12.5 | 120 | 5.35 |
| LL 30 IMP | Chrome Leather | Grey | - | Chrome Leather | Grey | - | Polyamide | 5.5 | 15 | 200 | 5.65 |
| LL 28 IMP | Chrome Leather | Grey | - | Chrome Leather | Grey | - | Polyamide | 5.7 | 15 | 200 | 5.7 |
| LL 40 IMP | Chrome Leather | Grey | - | Chrome Leather | Grey | - | Polyamide | 6.2 | 20 | 240 | 6.6 |
| LL 42 IMP | Chrome Leather | Grey | - | Chrome Leather | Grey | - | Polyamide | 6.65 | 22.5 | 280 | 7.3 |
| LL 56 IMP | Chrome Leather | Grey | - | Chrome Leather | Grey | - | Polyamide | 7.6 | 30 | 380 | 7.8 |
| LL 60 IMP | Chrome Leather | Grey | - | Chrome Leather | Grey | - | Polyamide | 7.4 | 30 | 380 | 8.1 |
| LL 70 IMP | Chrome Leather | Grey | - | Chrome Leather | Grey | - | Polyamide | 8.55 | 37.5 | 460 | 9.05 |
| LL 80 IMP | Chrome Leather | Grey | - | Chrome Leather | Grey | - | Polyamide | 8.6 | 40 | 500 | 9.6 |
