Zeon Belts Pvt. Ltd.

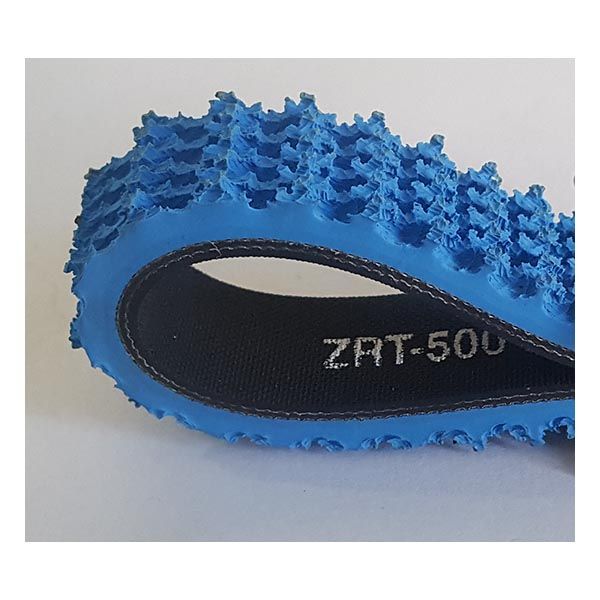

Rough Top Belts

Rough Top Belts
Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler
Type Top Belt
Material Neoprene
Thickness 10-20mm
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Color
Available in Many Colors
Feature
Excellent Quality, Heat Resistant
Shape
Round

We are offering Rough Top Belts to our esteemed buyers in both national and international markets. To address the urgent and bulk requirements of the customers, we manage a stock of the Top Belts in our spacious warehouse. We are a celebrated Manufacturer, Exporter & Supplier of Rough Top Belts from Punjab, India and ensure timely delivery of the Rough Top Belts to any part of the world.

More about Rough Top Belts : Zeon also offers rough top belting for various conveying applications. We have also developed Synthetic Feeder belts which we supply in open rolls. The cutting & endlessing of these belts can be done like any other standard belt using the same standard glues and jointing procedure. Zeon also offers hole belts for circular weaving machines. This belt is designed to provide a constant, synchronized, slip-free drive to all the yarn feeders on the feeder ring. The belt has an excellent tensile strength and gives long working life.



Salient Features :

  • High dimensional stability
  • Optimum modulus of elasticity
  • High flexibility
  • Resistance to chemicals & oils

Yes! I am interested


Specifications

Belt Grade Top Cover Reverse Cover Traction Layer Total Thickness Shaft Load 1% Min Pulley Belt Weight approx.
Material Colour Surface Material Colour Surface Material mm N/mm mm Kg/Sq. mtr.
ZRT-500 IMP X X-NBR Blue Rough Top X-NBR Black Rough Polyamide 6 5 90 5.6
ZRT-750/75 IMP X X-NBR Blue Rough Top X-NBR Black Rough Polyamide 7.5 7.5 100 8.75
FB-6 IMP NBR-SPL Red Rough NBR Light Green Rough Polyamide 6 5 25 7.5
FB-8 IMP NBR-SPL REd Rough NBR Light Green Rough Polyamide 8 5 25 9.5
KB MEM NBR Dark Green Rough NBR Yellow Rough Polyamide 1.5 5 15 1.4
KB 14 NBR Dark Blue Rough NBR Yellow Rough Polyamide 1.5 5 15 1.4
KB 15 NBR Light Green Rough NBR Yellow Rough Polyamide 1.5 5 15 1.4
